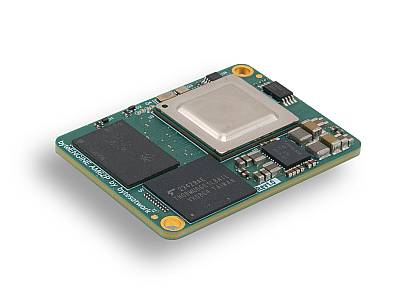

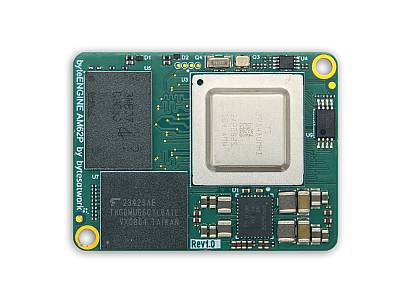

byteENGINE AM62P54
Description
>Quad core ARM Cortex-A53 and Cortex-M4F MCU Co-CPU. The ARM Cortex-A53 provides powerful computing elements for Linux applications. Functional safety features can be enabled through the integrated MCU along with its dedicated peripherals which can all be isolated from the rest of the SoC. The additional PRU module enables real-time I/O capability.
>Flexible connectivity with extensive peripheral and networking options. Two USB 2.0 interfaces, two SDIO interfaces, MIPI-CSI camera interface, dual Gigabit Ethernet MAC, serial interface.
>Powerful 3D Graphics Core with rich display capabilities. Dual LVDS-display output options at resolutions up to 2K@60fps paired with the advanced 3D-Graphics core IMG AXE1-16 for an outstanding user experience.
>High-speed LPDDR4 memory interface. For the highest performance and lowest standby power.
> Small format, high performance. Our module is smaller than a passport photo, which makes it fit easily into any design. Even the space below the module can be used efficiently.
>Secure boot and hardware security module. The boot procedure of our module can be secured so that only your software will run on the devices. The on-chip isolated dual-core microcontroller enables more dependable and functional safety-certifiable products.
Specification
| CPU Name | AM62P54AUMHIAMH |
|---|---|
| CPU Type | 4x ARM© Cortex A53 |
| Co-CPU | ARM® Cortex®-M4F (400 Mhz) |
| RAM | 4 GB |
| Flash | eMMC 16 GB |
| Power Consumption | max. 4W |
| Product Dimensions | 30.0 x 40.0 x 5.0 mm |
| Temperature | 0° to +70° C |

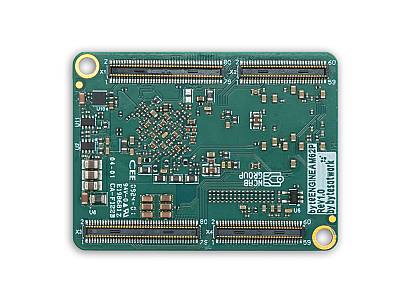

| Connectors | 2 x 80PIN | 2 x 60PIN |
| CPU Family | TI AM62P |
| Clock | 1400 |
| Shopkategorie | Module |
Software
Our constantly updated byteWIKI helps getting startet with our products. Furthermore the byteWIKI leads step by step through the first bring-up and delivers usefull and structured information about Software- and Hardware-Development. For more details please follow the link to the byteWIKI:
