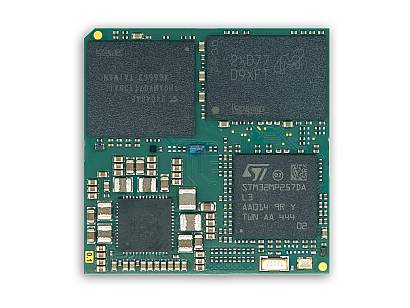

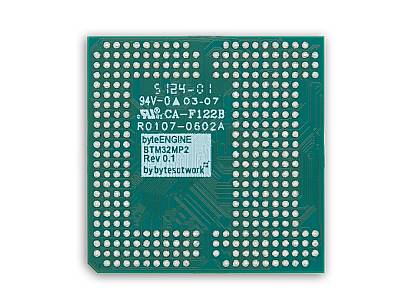

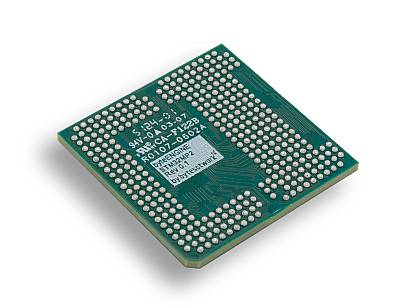

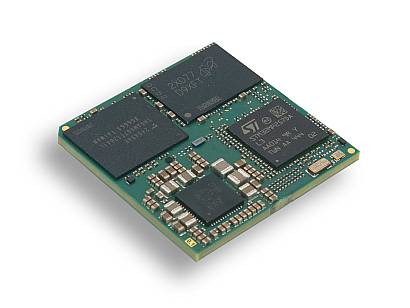

byteENGINE STM32MP25 OSM
Description
>Dual core ARM Cortex-A35 and Cortex-M33 MCU Co-CPU. The ARM Cortex-A35 runs on 1.5 GHz and thus offers plenty of power for your Linux application. Thanks to the integrated Cortex-M33 with 250MHz, real-time applications can also be executed. Furthermore, a Cortex-M0 with 200MHz SmartRun domain offers additional processor power.
>AI and machine learning. The SoC is equipped with a Neural Processing Unit NPU.
>Flexible Connectivity with plenty of possibilities. One USB 2.0 and one USB 3.0 interface, three Flex-CAN, three SDIO interfaces, a MIPI-CSI camera interface, dual Gigabit Ethernet MAC and many serial-interfaces.
>High-speed LPDDR4 memory interface. For maximum Performance and extremely low Standby Power Consumption.
>Small format, high performance. Our Module is designed with the OSM-S Standard and offers great flexibility and performance in the smallest space.
>Secure boot and Hardware Security-Module. The latest generation of ST STM32MP25 offers a wide range of security support: Secure Boot is state-of-the-art.
Specification
| CPU Name | STM32MP257 |
|---|---|
| CPU Type | 2x ARM© Cortex A35 |
| Co-CPU | Cortex M33 MCU |
| RAM | 1 GB |
| Flash | eMMC 16 GB |
| Product Dimensions | 30.0 x 30.0 x 3.0 mm |
| Temperature | 0° to +70° C |
| Connectors | OSM |
| CPU Family | ST STM32MP2 |
| Clock | 1500 |
| Shopkategorie | Module |
Software
Our constantly updated byteWIKI helps getting startet with our products. Furthermore the byteWIKI leads step by step through the first bring-up and delivers usefull and structured information about Software- and Hardware-Development. For more details please follow the link to the byteWIKI:
